Agriculture UAV Battery

Products Detail

Agriculture UAV Battery

Features


●L OW IR, cell IR <1.0mΩ

●Excellent High Temperature Storage Performance (60°C 30days & 85°C 4 hours )

●Long Cycle Life

●Excellent Safety Performance & C onsistency
Product description

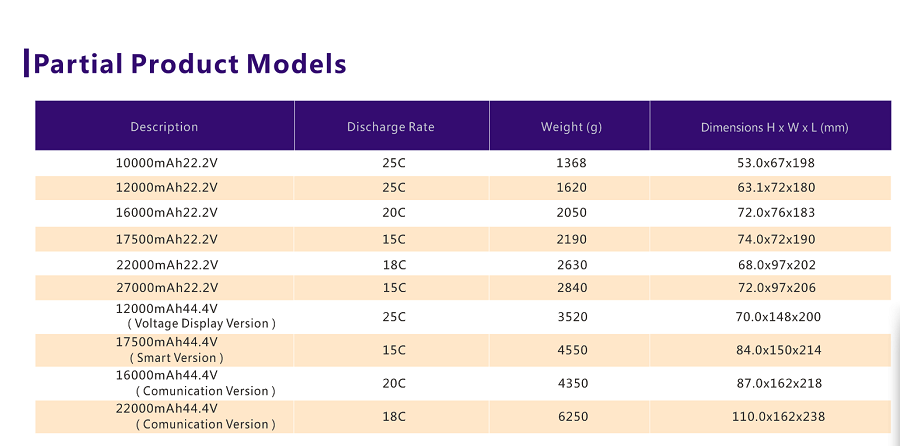

Partial Product Models



Model
Battery Description
Max cont. discharge
(C-rate/current)
Max Burst(3Sec)
(C-rate/current)
Size(mm)
(H*W*L)
Weight
8300mAh-6S
22.2V 8300mAh 6cell
15C/124.5A
30C/249.0A
38.5x67x198
1050.0
10000mAh-6S
22.2V 10000mAh 6cell
25C/250.0A
50C/500.0A
53.0x67x198
1368.0
12000mAh-6S
22.2V 12000mAh 6cell
25C/300.0A
50C/600.0A
53.0x72x180
1620.0
14000mAh-6S
22.2V 14000mAh 6cell
25C/364.0A
50C/728.0A
56.2x68x232
1860.0
16000mAh-6S
22.2V 16000mAh 6cell
25C/400.0A
50C/800.0A
62.0x90x203
2100.0
22000mAh-6S
22.2V 22000mAh 6cell
18C/396.0A
30C/660.0A
57.0x97x202
2180.0



Please contact us for complete model list.





Typical applications



●Multi-Rotors Agriculture UAV   ●Single-Rotor Agriculture UAV



Model
Capacity
Rate
Description
Size(mm)
(H*W*L)
Weight
g
FFB8365188HP
10000mAh
25C
Ordinary soft bag
53x67x198
1368
FB8365188HP
10000mAh
25C
Plus the cover and the light*2
220x115x71
3576
FB10270169HP
12000mAh
25C
Ordinary soft bag
63x72x180
1620
FB9267220HP
14000mAh
25C
Ordinary soft bag
56x68x232
1860
FB9788188HP
16000mAh
25C
Plus the cover and the light*2
220x130x92
5170
FB9788188HP
16000mAh
25C
Ordinary soft bag
62x90x203
2160
FB6265188XL
16500mAh-1S2P
15C
Ordinary soft bag
78x67x198
2060
FB9788188HP-M
16000mAh
25C
Smart battery (older update)
235x97x75
2395
FB9788188XL
18000mAh
15C
Ordinary soft bag
62x90x203
2220
FB11096190XL
22000mAh
18C
Plus the cover and the light*2
220x145x102
6145
FB11096190XL
22000mAh
18C
Ordinary soft bag
68x97x202
2630
